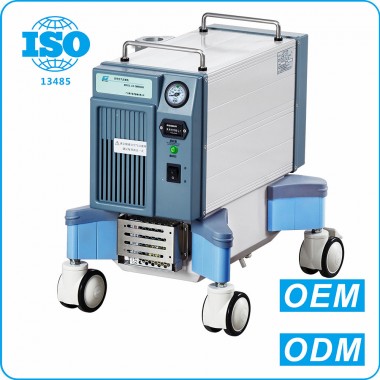

Name of product: Medical Air Compressor for Ventilator PN-4000
The core component of medical air compressor for PN-4000 adopting American GAST or Thomas oil-free vacuum pump. It is mainly used as gas source with domestic or imported medical device and extracoporeal circulation by matching with ventilator , anesthesia machine , automatic ventilator ,CPAP.
Technical Parameter:
Maximum discharge pressure: 0.7MPa
Output pressure: 0..25MPa-0.4MPa
Discharge pressure: 0.5MPa
Maximum flow: Not more than 25L/min
Noise: Less than 52dB(A)
Power:AC220V 50Hz 250VA
Boundary dimension:400*300*380(mm)
Characteristic:
The mold design---compact structure, space saving.
Medical grade improted oild-free vacuum pump-high quanlity, maintenance -free.
Two layer air filter device---clean.
Small volume, low nosie, long life (continuous operation exceeds 10000 hours).
Mass flow synchronization ouput interface.
Gas for oil-free, dry (match with dryer, dew point reaches -20°c).
Automatic drainage and processing technology for two-stage filtration water.
Can match with many domestic, world famous brand ventilator.pressure: 0.7MPa
